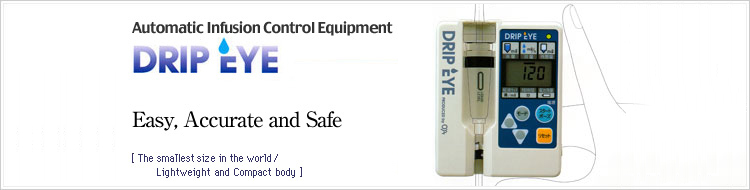

NE-1

Electronic EYE performs accurate drip control as a nurse's eyes

Taking a hint of all ideas from a field.
Considering a doctor's and nurse's positions naturally, Drip Eye made needs and wants into the shape. Also valuing the position of a patient who receives infusion control.
Not only a maker's idea, but also a user's idea enabled the proposal of epoch-making infusion control.
It completed on the compact body which is unique in the medical device industry.
Please check simple, accurate and safe DRIP EYE once.

Light and Compact Cigarette Pack-Size

The equipment is as small as a pack of cigarette and weights only 158g. It is attachable directly to a drip chamber.※1
The AC adapter or the built-in rechargeable battery can run the equipment,※2 therefore it can be used anywhere without worrying about the power supply.

  1. ※1　The equipment is attachable to the infusion stand with attachment bar.
  2. ※2　Consecutive operation time for approx.15hours when the battery is fully charged.
NE-1
Easy Operation Controls Accurate Flow of Dripping

After attaching a drip chamber to DRIP EYE, setting up the liquid quantity, the flow rate and the remaining quantity, then press the START/STOP switch, it indicates the remaining time to complete the dripping.
When the task is over, it will stop automatically with audible alarm.
The infrared censor and the stepping motor control the follow rate accurately to perform safe dripping.

NE-1
More Useful Functions
  1. It stops automatically in order to prevent air goes into an inner tube when the dripping is over.
  2. It indicates with the audible alarm when the dripping is over and abnormalities occur.
  3. The residual time which the dripping takes is impressed as real time, and the infusion control is simplified. The irritation over a patient's prolonged fluid therapy is canceled.
  4. Last time, the set point of an activity is held by the memory and can perform the activity which continued with the same set point.
Display
Volume
〈Volume(ml)〉
Indicate the medical fluid volume. Set every 10ml from 100, 200, 500, 1000, 2000ml.
Flow Rate
〈Flow Rate(ml/h)〉
Indicate the flow rate per one hour. Set from 10 to 500ｍl.
Residual Volume
〈Residual Volume(ml)〉
Indicate the residual volume when you want to finish the dripping without using all the infusion liquid. The residual volume can be pre set to Zero.
Infusion Set
〈Infusion Set(drops／ml)〉
Set every one(1) drop from 10 drops/ml to 20 drops/ml.
Residual Time
〈Residual Time(minute)〉
Indicate the remaining time until the dripping is completed.
Battery Level
〈Battery Level〉
Indicate the charging status of battery.
  1. 1. Sufficient battery status
    _No Indication
  2. 2. In sufficient battery status
    _Lighting
  3. 3. Dying battery status
    _Flashing Alarm
